EGFR Kit ELISA

N° du produit ABIN625225

Détail du produit EGFR Kit ELISA

Antigène: EGFR (Epidermal Growth Factor Receptor (EGFR))

Épitope: pTyr992

Reactivité: Humain

Méthode de détection: Colorimetric

Type de méthode: Sandwich ELISA

Application: ELISA

Fonction: Human Phospho-EGFR (Y992) ELISA Kit. This assay semi-quantitatively measures phophorylated EGFR (Tyr992) in lysate samples.

Type d'échantillon: Cell Lysate, Tissue Lysate

Analytical Method: Semi-Quantitative

Specificité: The antibody pair provided in this kit recognizes human Phospho-EGFR (pTyr992).

Attributs du produit:

• Rapidly measure phosphorylated protein in lysates
• Screen numerous different cell lysates without performing a Western Blot analysis
• Minimal hands-on time, convenient, and non-radioactive material

Ingrédients:

• Pre-Coated 96-well Strip Microplate
• Wash Buffer
• Anti-Phospho Antibody
• HRP-Conjugated Secondary Antibody
• Assay Diluent
• TMB One-Step Substrate
• Stop Solution
• Lysis Buffer
• Positive Control Sample

Matériel non inclus:

• Distilled or deionized water
• 100 mL and 1 liter graduated cylinders
• Tubes to prepare sample dilutions
• Protease and Phosphatase inhibitors
• Precision pipettes to deliver 2 μL to 1 mL volumes
• Adjustable 1-25 mL pipettes for reagent preparation
• Benchtop rocker or shaker
• Microplate reader capable of measuring absorbance at 450 nm

Information d'application

Volume d'échantillon: 100 μL

Plaque: Pre-coated

Protocole:

1. Prepare all reagents and samples as instructed in the manual.
2. Add 100 μL of sample or positive control to each well.
3. Incubate 2.5 h at RT or O/N at 4 °C.
4. Add 100 μL of prepared primary antibody to each well.
5. Incubate 1 h at RT.
6. Add 100 μL of prepared 1X HRP-Streptavidin to each well.
7. Incubate 1 h at RT.
8. Add 100 μL of TMB One-Step Substrate Reagent to each well.
9. Incubate 30 min at RT.
10. Add 50 μL of Stop Solution to each well.
11. Read at 450 nm immediately.

Préparation des réactifs:

1. Bring all reagents and samples to room temperature (18 - 25 °C) before use.
   2. Item E, Assay Diluent should be diluted 5-fold with deionized or distilled water before use.

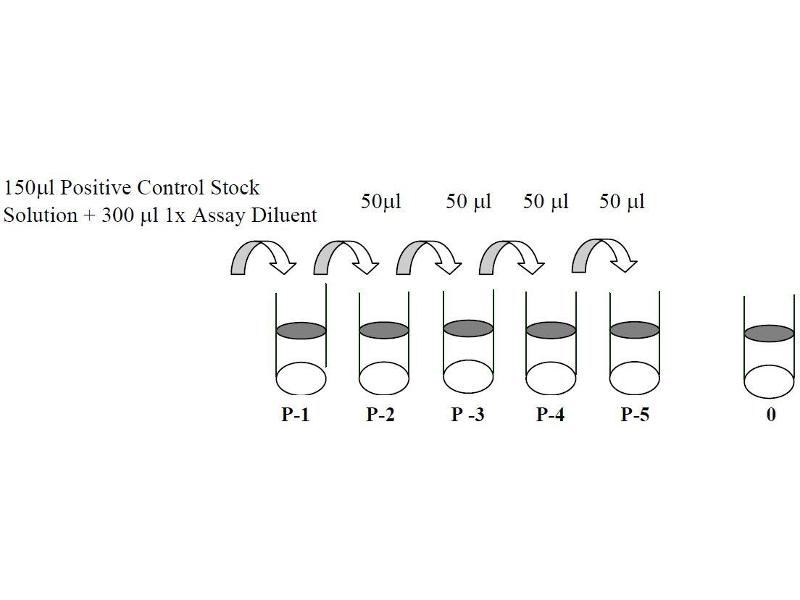

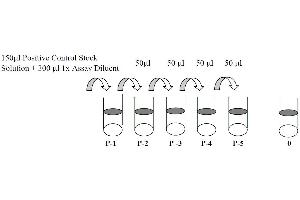

   3. Preparation of Positive Control: Briefly spin the Positive Control vial of Item K. Add 500 µL 1x Assay Diluent (Item E, Assay Diluent should be diluted 5-fold with deionized or distilled water before use) into Item K vial to prepare a Positive Control Stock Solution. Dissolve the powder thoroughly by a gentle mix (it can be removed by centrifuge if any precipitate in the solution is found). Add 150 µL prepared Positive Control Stock Solution from the vial of Item K, into a tube with 300 µL 1x Assay Diluent to prepare P-1 (See i. Positive control of part IX. TYPICAL DATA for a typical result). Pipette 450 µL 1x Assay Diluent into each tube. Use the Positive Control (1) to produce a dilution series (shown below). Mix each tube thoroughly before the next transfer. 1x Assay Diluent serves as the background. Phospho-EGFR (Tyr 992) ELISA Kit Protocol 6
   4. If the Wash Concentrate (20x) (Item B) contains visible crystals, warm to room temperature and mix gently until dissolved. Dilute 20 mL of Wash Buffer Concentrate into deionized or distilled water to yield 400 mL of 1x Wash Buffer.
   5. Briefly spin the anti-phospho-EGFR (Tyr 992) (Item C) before use. Add 100 µL of 1x Assay Diluent into the vial to prepare a detection antibody concentrate. Pipette up and down to mix gently (the concentrate can be stored at 4 °C for 5 days. It can be used within one month If store at -80 °C. Avoid repeated freeze-thaw cycles). The detection antibody concentrate should further be diluted 60-folds with 1x Assay Diluent and used in step 4 of Part VII Assay Procedure.
   6. Briefly spin the HRP-conjugated anti-rabbit IgG (Item D-1), before use. Pipette up and down to mix gently. HRP- conjugated anti-rabbit IgG concentrate should be diluted 500-folds with 1x Assay Diuent.
   7. Cell Lysate Buffer should be diluted 2-folds with deionized or distilled water before use (recommend to add protease and phosphatase inhibitors). 50 µL 150µl Positive Control Stock Solution 300 µL 1x Assay Diluent 50µl 50 µL P-1 P-2 P -3 P-4 P-5 0 50 µL Phospho-EGFR (Tyr 992) ELISA Kit Protocol 7 VII.

Préparation de l'échantillon:

Cell lysates - Rinse cells with PBS, making sure to remove any remaining PBS before adding the Cell Lysate Buffer. Solubilize cells at 4 x 107 cells/mL in 1x Cell Lysate Buffer (we recommend adding protease and phosphatase inhibitors to Cell Lysate Buffer prior to sample preparation). Pipette up and down to resuspend and incubate the lysates with shaking at 2 - 8° C for 30 minutes. Microcentrifuge at 13,000 rpm for 10 minutes at 2 - 8° C, and transfer the supernates into a clean test tube. Lysates should be used immediately or aliquoted and stored at -70 °C. Avoid repeated freeze-thaw cycles. Thawed lysates should be kept on ice prior to use.
For the initial experiment, we recommend to do a serial dilution testing such as 5-fold and 100-fold dilution for your cell lysates with Assay Diluent (Item E) before use.
Note: The fold dilution of sample used depends on the Phospho-EGFR (Tyr 992) ELISA Kit Protocol 5 abundance of phosphorylated proteins and should be determined empiricallys. More of the sample can be used if signals are too weak. If signals are too strong, the sample can be diluted further.
Cell Lysate Buffer should be diluted 2-fold with deionized or distilled water before use (recommend to add protease and phosphatase inhibitors).

Procédure de l'essai:

1. Bring all reagents to room temperature (18 - 25 °C) before use. It is recommended that all samples or Positive Control should be run at least in duplicate.
   2. Add 100 µL of each sample or positive control into appropriate wells. Cover well with plate holder and incubate for 2.5 hours at room temperature or over night at 4 °C with shaking.
   3. Discard the solution and wash 4 times with 1x Wash Solution. Wash by filling each well with Wash Buffer (300 µL) using a multi-channel Pipette or autowasher. Complete removal of liquid at each step is essential to good performance. After the last wash, remove any remaining Wash Buffer by aspirating or decanting. Invert the plate and blot it against clean paper towels.
   4. Add 100 µL of prepared anti-phospho-EGFR (Tyr 992) (Reagent Preparation step 5) to each well. Incubate for 1 hour at room temperature with shaking.
   5. Discard Discard the solution. Repeat the wash as in step3.
   6. Add 100 µL of prepared 500 fold diluted HRP-conjugated anti- rabbit IgG (see Reagent Preparation step 6) to each well. Incubate for over night at 4 °C with shaking.
   7. Discard Discard the solution. Repeat the wash as in step3. Phospho-EGFR (Tyr 992) ELISA Kit Protocol 8
   8. Add 100 µL of TMB One-Step Substrate Reagent (Item H) to each well. Incubate for 30 minutes at room temperature in the dark with shaking.
   9. Add 50 µL of Stop Solution (Item I) to each well. Read at 450 nm immediately.

Calcul des résultats:

ELISA data analysis: Average the duplicate readings for each sample or positive control then subtract the average blank optical density.

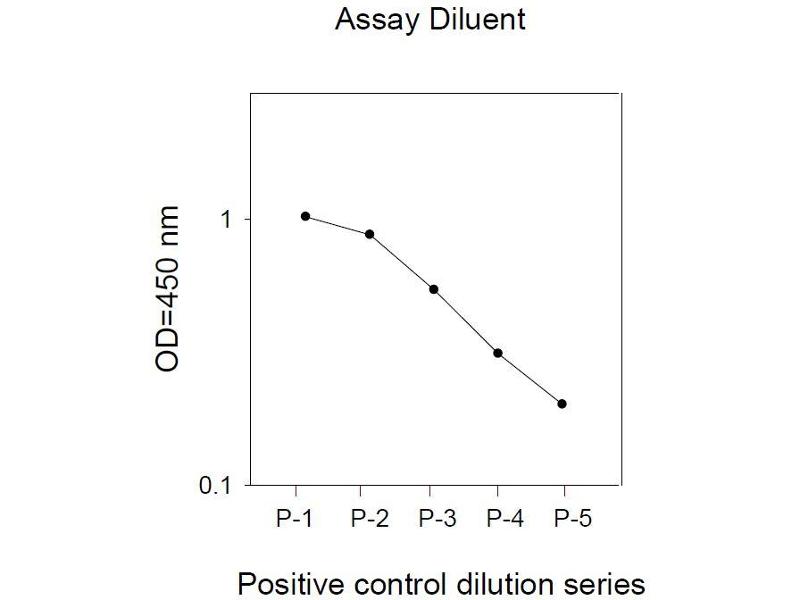

i. Positive Control A431 cells were treated with recombinant human EGF at 37 °C for 20 min. Solubilize cells at 4 x 107 cells/mL in Cell Lysate Buffer. Serial dilutions of lysates were analyzed in this ELISA. Please see step 3 of Part VI. Reagent Preparation for detail. Assay Diluent Positive control dilution series O D = 4 5 0 n m 0.1 1 P-1 P-2 P-3 P-4 P-5 Phospho-EGFR (Tyr 992) ELISA Kit Protocol 10

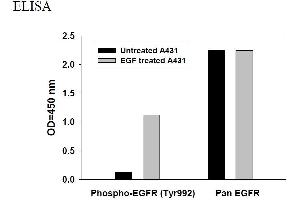

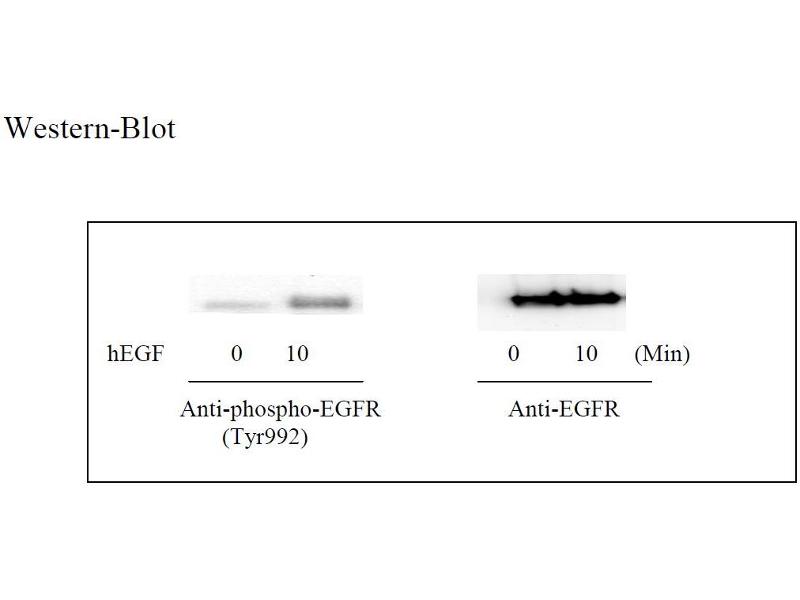

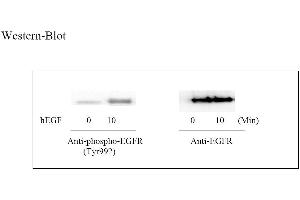

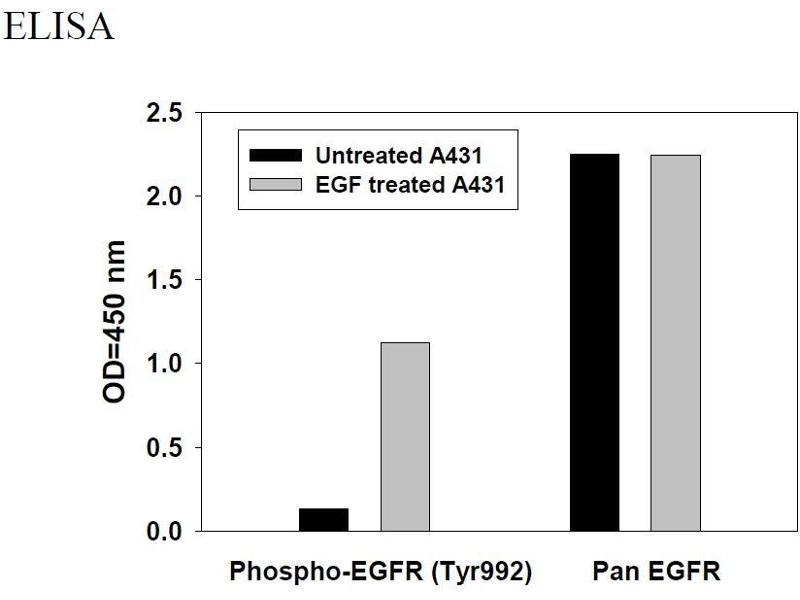

ii. Recombinant Human EGF Stimulation of A431 Cell Lines A431 cells were treated or untreated with 100 ng/mL recombinant human EGF for 10 min. Cell lysates were analyzed using this phosphoELISA and Western Blot. ELISA Phospho-EGFR (Tyr992) Pan EGFR O D =4 50 n m 0.0 0.5 1.0 1.5 2.0 2.5 Untreated A431 EGF treated A431 Western-Blot hEGF 0 10 0 10 (Min) Anti-phospho-EGFR Anti-EGFR (Tyr992) Phospho-EGFR (Tyr 992) ELISA Kit Protocol 11

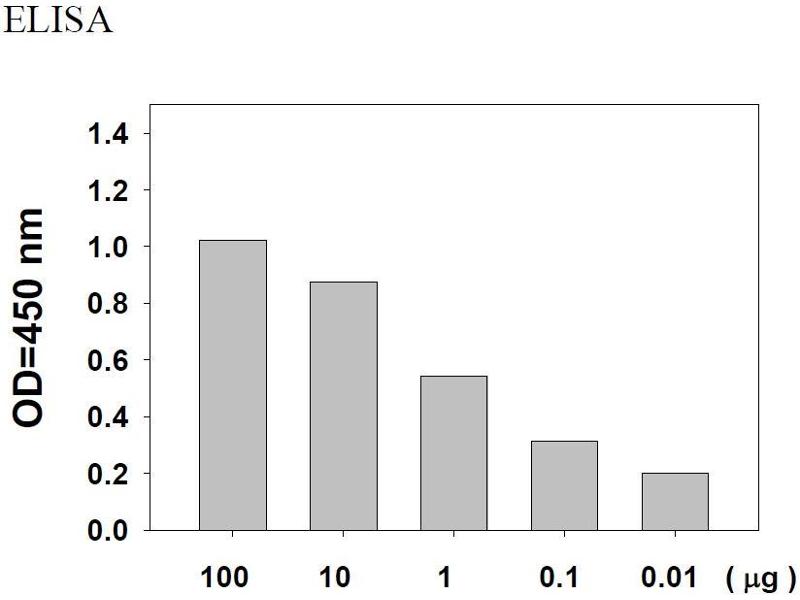

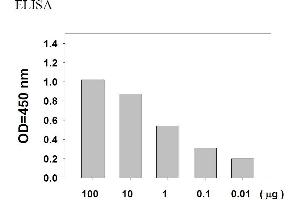

iii. SENSITIVITY The A431 cells were treated with 100 ng/mL recombinant human EGF for 20 minutes to induce phosphorylation of EGF R. Serial dilutions of lysates were analyzed in this ELISA and by Western blot. Immunoblots were incubated with anti-phospho-EGFR (Tyr 992). ELISA 100 10 1 0.1 0.01 ( µg ) O D =4 50 n m 0.0 0.2 0.4 0.6 0.8 1.0 1.2 1.4 X.

Restrictions: For Research Use only

Stockage

Conseil sur la manipulation: Avoid repeated freeze- thaw cycles.

Stock: -20 °C

Stockage commentaire: Upon receipt, the kit should be stored at -20 °C. Please use within 6 months from the date of shipment. After initial use, Wash Buffer Concentrate (Item B), Assay Diluent (Item E), TMB One-Step Substrate Reagent (Item H), HRP-Streptavidin (Item G), Stop Solution (Item I) and Cell Lysate Buffer (Item J) should be stored at 4 °C to avoid repeated freeze-thaw cycles. Return unused wells to the pouch containing desiccant pack, reseal along entire edge and store at -20 °C. Reconstituted Positive Control (Item K) should be stored at -70 °C.

Date de péremption: 6 months

Détail du antigène

Antigène: EGFR (Epidermal Growth Factor Receptor (EGFR))

Autre désignation: EGFR (EGFR Produits)

Synonymes: C-erb Kit ELISA, CG10079 Kit ELISA, D-EGFR Kit ELISA, D-Egf Kit ELISA, DEGFR Kit ELISA, DER Kit ELISA, DER flb Kit ELISA, DER/EGFR Kit ELISA, DER/faint little ball Kit ELISA, DER/top Kit ELISA, DER/torpedo Kit ELISA, DER1 Kit ELISA, DEgfr Kit ELISA, Degfr Kit ELISA, Der Kit ELISA, DmHD-33 Kit ELISA, Dmel\\CG10079 Kit ELISA, EFG-R Kit ELISA, EGF-R Kit ELISA, EGFR Kit ELISA, EGFr Kit ELISA, EGfr Kit ELISA, EK2-6 Kit ELISA, Egf Kit ELISA, Egf-r Kit ELISA, EgfR Kit ELISA, El Kit ELISA, Elp Kit ELISA, Elp-1 Kit ELISA, Elp-B1 Kit ELISA, Elp-B1RB1 Kit ELISA, HD-33 Kit ELISA, TOP Kit ELISA, Torpedo/DER Kit ELISA, Torpedo/Egfr Kit ELISA, c-erbB Kit ELISA, d-egf-r Kit ELISA, dEGFR Kit ELISA, dEGFR1 Kit ELISA, dEgfr Kit ELISA, der Kit ELISA, egfr Kit ELISA, flb Kit ELISA, l(2)05351 Kit ELISA, l(2)09261 Kit ELISA, l(2)57DEFa Kit ELISA, l(2)57EFa Kit ELISA, l(2)57Ea Kit ELISA, mor1 Kit ELISA, top Kit ELISA, top/DER Kit ELISA, top/flb Kit ELISA, torpedo/Egfr Kit ELISA, torpedo/egfr Kit ELISA, EGFR12 Kit ELISA, EGFR15 Kit ELISA, egfr1 Kit ELISA, Erbb2 Kit ELISA, ERBB Kit ELISA, ERBB1 Kit ELISA, HER1 Kit ELISA, PIG61 Kit ELISA, mENA Kit ELISA, ErbB-1 Kit ELISA, Errp Kit ELISA, 9030024J15Rik Kit ELISA, AI552599 Kit ELISA, Erbb Kit ELISA, Errb1 Kit ELISA, Wa5 Kit ELISA, wa-2 Kit ELISA, wa2 Kit ELISA, epidermal growth factor receptor Kit ELISA, Epidermal growth factor receptor Kit ELISA, epidermal growth factor receptor a (erythroblastic leukemia viral (v-erb-b) oncogene homolog, avian) Kit ELISA, EGFR Kit ELISA, Egfr Kit ELISA, egfra Kit ELISA, egfr1 Kit ELISA, LOC5564544 Kit ELISA

Sujet: EGFR-Y992

ID gène: 3236

UniProt: P00533

Pathways: Signalisation NF-kappaB, Signalisation RTK, Fc-epsilon Receptor Signaling Pathway, EGFR Signaling Pathway, Neurotrophin Signaling Pathway, Stem Cell Maintenance, Hepatitis C, Positive Regulation of Response to DNA Damage Stimulus, Interaction of EGFR with phospholipase C-gamma, Thromboxane A2 Receptor Signaling, EGFR Downregulation, S100 Proteins
